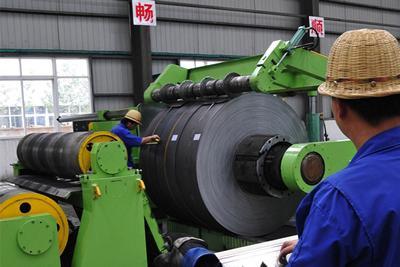

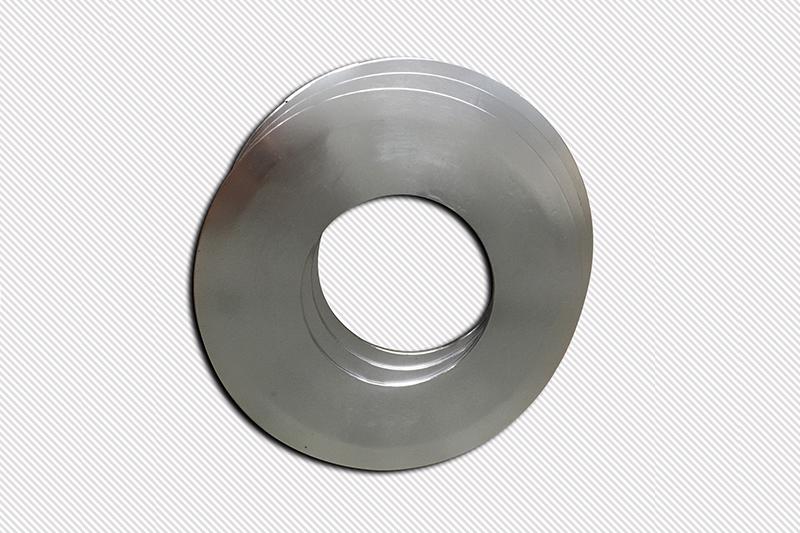

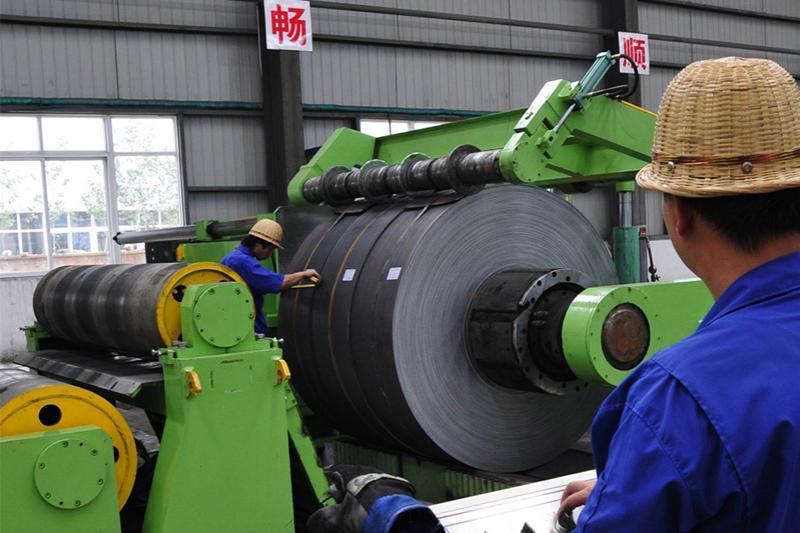

The slitter separator disc (guide disc) is used on the shaft of slitter for separation and guidance of slit narrow materials, facilitating to rewind materials into narrow coils. Because of the heat generated by frequent friction with materials, the separator disc's abrasion performance and surface finish are required to be extremely high.

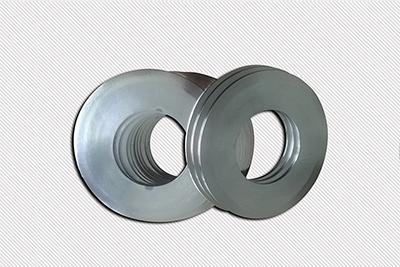

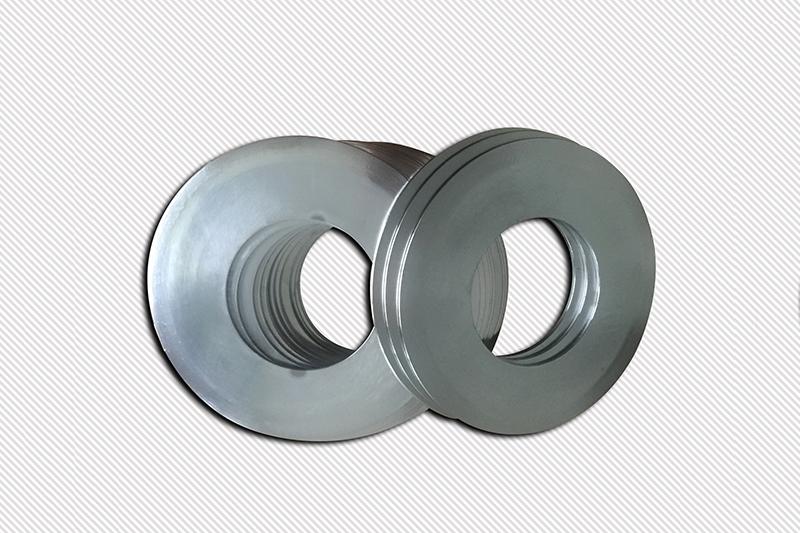

The slitter separator discs Seton produced are generally made from GCr15, 9CrSi, SKD-11 etc. The surface of separator disc is polished and chrome plated to improve its surface abrasion resistance and fineness.
|Tolerance of external diameter||-0.01~﹢0.01|
|Tolerance of internal diameter||+0.01|
The slitter separator discs have a commonly used size of 80mm-400mm diameter, 0.9-20mm thickness, and the selection of materials are based on customers' drawings requirements.
TCSF, GEORG, Butech Bliss, CAMU etc.
