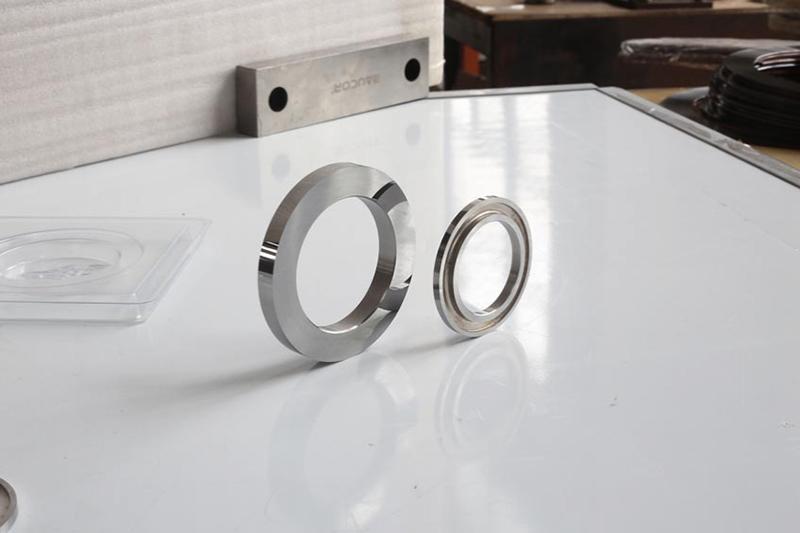

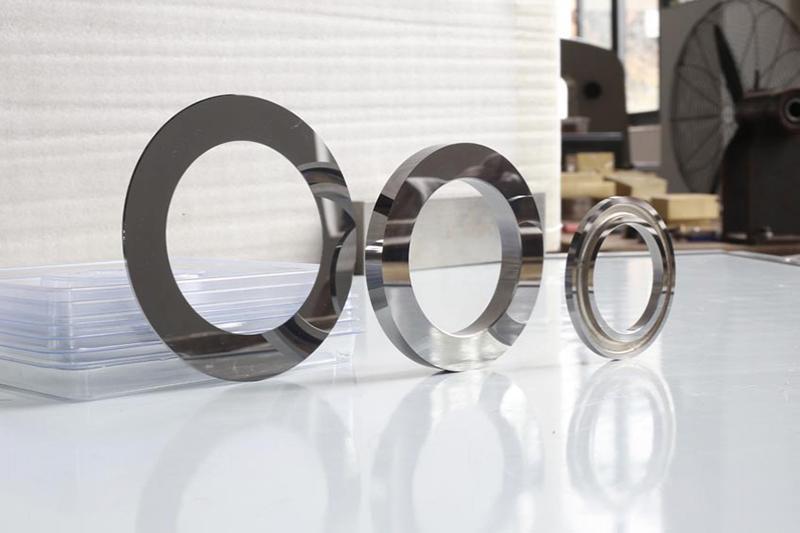

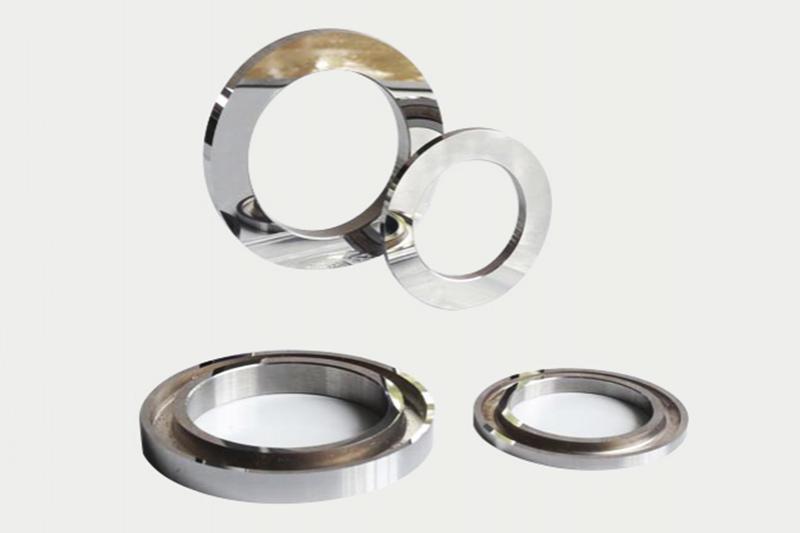

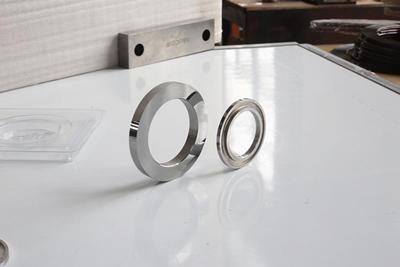

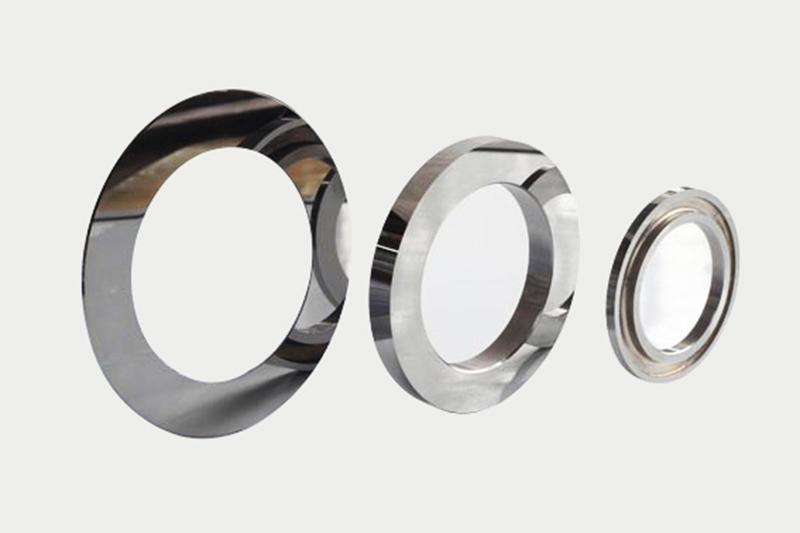

Lithium Battery Circular Cutting Blade

The lithium battery circular cutting blade is applied to the slitting of lithium battery electrode chip. Made from ultrafine tungsten carbide, it can slit lithium iron phosphate, lithium manganate, cobaltic acid etc., matching NISHIMURA (Japan), ARECONN, Wuhan SWIFT HORSE, Dali and other models. The Seton lithium battery circular cutting blade has high precision, the service life of which depends on the slitting materials, generally between 80,000 and 300,000m.

Parameters
Outer diameter D ±0.015mm
Thickness H ±0.002mm
Tolerance of inner hole +0.015mm~+0.02mm
Concentricity 0．0015
Flatness 0.001mm
Hardness HRC 90±1°
Features
  • The lithium battery circular cutting blade has high precision, the service life of which depends on the slitting materials, generally between 80,000 and 300,000m.
  • The precision of the blade edge is checked before accepted under 200-400 times microscope, no obvious breach observed.

Customization
The lithium battery circular cutting blade can be customized according to customers' precision and application requirements.

Common specifications
Top blade Bottom blade
φ 90× φ 60×0.8 φ 90× φ 60×2.0
φ 100× φ 65×0.7 φ 100× φ 65×2.0
φ 100× φ 65×1.0 φ 100× φ 65×3.0
φ 110× φ 90×1.0 φ 110× φ 75×3.0
φ 110.2× φ 90×1.0 φ 110× φ 90×3.0
φ 130× φ 88×1.0 φ 130× φ 70×3.0
φ 130× φ 97×0.8 φ 130× φ 95×4.0
φ 76× φ 46×0.5 φ 60× φ 40×5/3.5
φ 98× φ 66×0.7 φ 80× φ 55×8.5/10
