Application

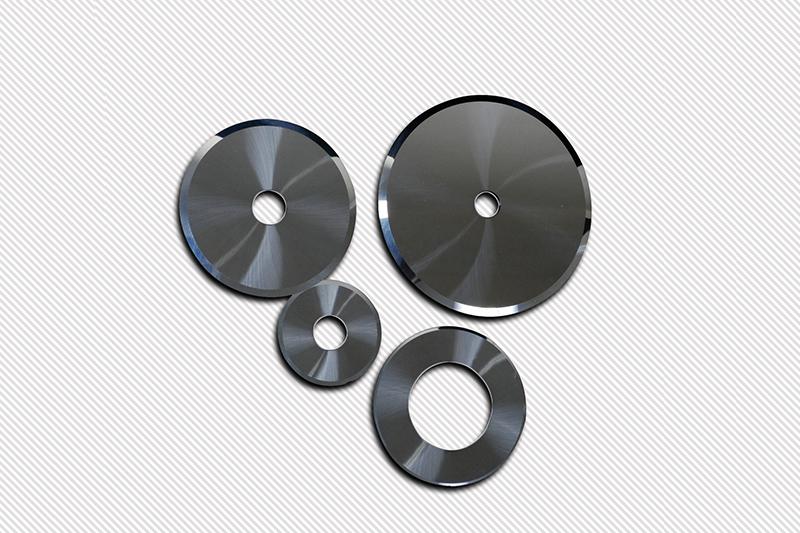

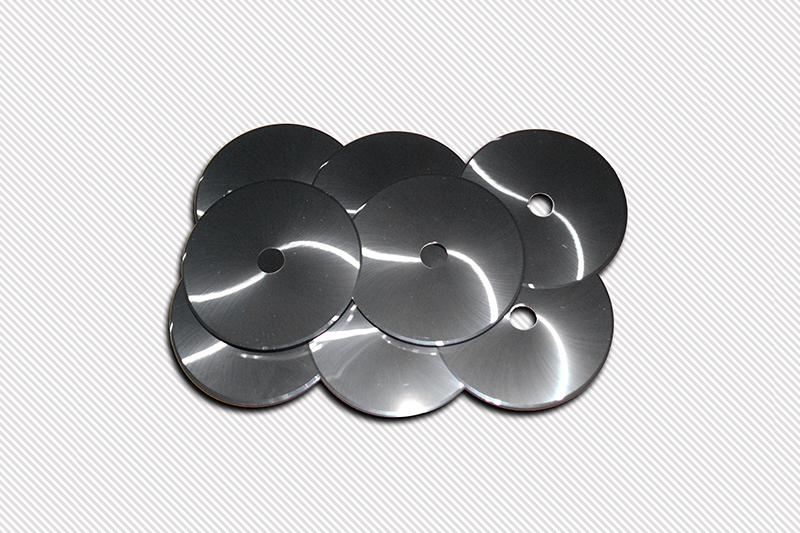

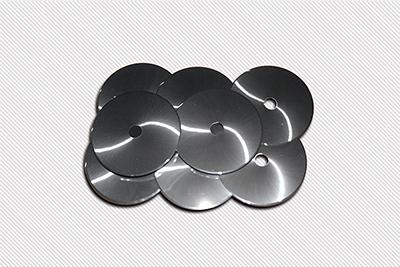

The tape slitting blade is mainly used on tape cutting machines to cut scotch transparent tape, electrical tape, cloth tape, double-sided tape and all kinds of special tapes. Seton's unique blade edge design and product quality are unanimously recognized by customers.
Material introduction
According to the types of slitting tapes and machines, the commonly used materials are SKH-51, tungsten carbide (YG10, YG12X, YG15). The selection of blades' materials, the processing technology and blade edge design directly affect the blades' service life and application effect. Seton will design the most suitable blades for you.
Hardness | HRA 89-93 |
Thickness tolerance | ±0.01 |
Tolerance of inner hole | 0.01-0.04 |
Smoothness | Ra 0.1um |
Customization
Customized and designed by customers' machine type and application requirements.
Specification | Outer diameter Φ | Inner diameter Φ1 | Thickness |
Φ180×Φ25.4×2mm | 180 | 25.4 | 2mm |
Φ200×Φ25.4×2mm | 200 | 25.4 | 2mm |
Φ250×Φ25.4×2.5.mm | 250 | 25.4 | 2.5mm |
Φ300×Φ25.4×3mm | 300 | 25.4 | 3mm |
Φ350×Φ25.4×3mm | 350 | 25.4 | 3mm |
Φ450×Φ25.4×4mm | 450 | 25.4 | 4mm |
Φ550×Φ25.4×5mm | 550 | 25.4 | 5mm |
Φ610×Φ68.3×4.76mm | 610 | 68.3 | 4.76mm |
